Knee Activators
Drawers | Cabinets | Tip-Outs
How They Work

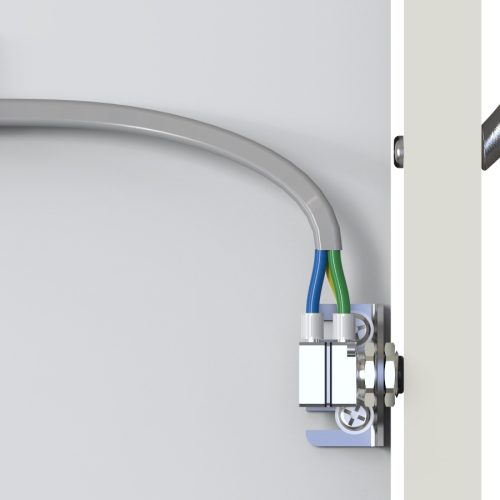

Tapmaster® knee activators are designed to be installed behind a cabinet door or drawer. All you have to do to turn the water on is press against the door or other face and voilà! Water on!
Of all the Tapmaster® activator styles, knee/cabinet door activators are the simplest to install and most cost-effective. The Tapmaster® turns the entire cabinet door into an activation surface. Many customers report that our cabinet door activators are simplest to use just by leaning against the cabinet when they want water.
Common Questions
My Cabinet Has Two Doors!

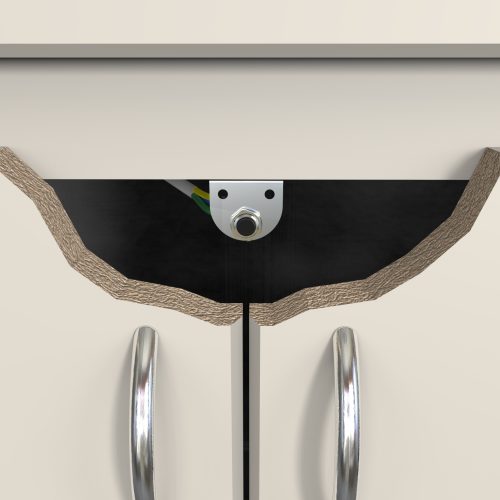

More doors means more fun! You can install the activator button at the seam where the two doors
meet to use both doors as a single activator. Or go wild with it and reach out to us to build a custom solution that lets you use one door for warm water and one door for cold water!
Will My Doors Look Funny With it Installed?
No they most certainly will not. Our activator button only needs to move 0.5mm (0.02 inches) which means you can’t even tell it is there with the door closed.
Can I Leave the Water Running?
Not with the cabinet door/knee activators, no. If you wish to have continuous flow you will have to pair the cabinet door activator with either a Euro, Kick Plate or one of our locking buttons.
Specs
Pressure
Flow
Connections
Filtration
Construction
Dimensions
Operating: 0-125psi (862kpa)
Static Burst: 700psi (4830kpa)
7.2gpm @ 60psi (27.01m³ @ 4 bar)
Inlet: Integrated 3/8″ compression nut “O” ring seal
Outlet: Nut and Sleeve 3/8″
Main Flow: 0.06″ (1.5mm)
Control Circuit: 25 micron
Valve Bodies: Chrome Plated Brass
Seals: Silicone and E.P.D.M.
Control Tubing: proprietary high density polyurethane

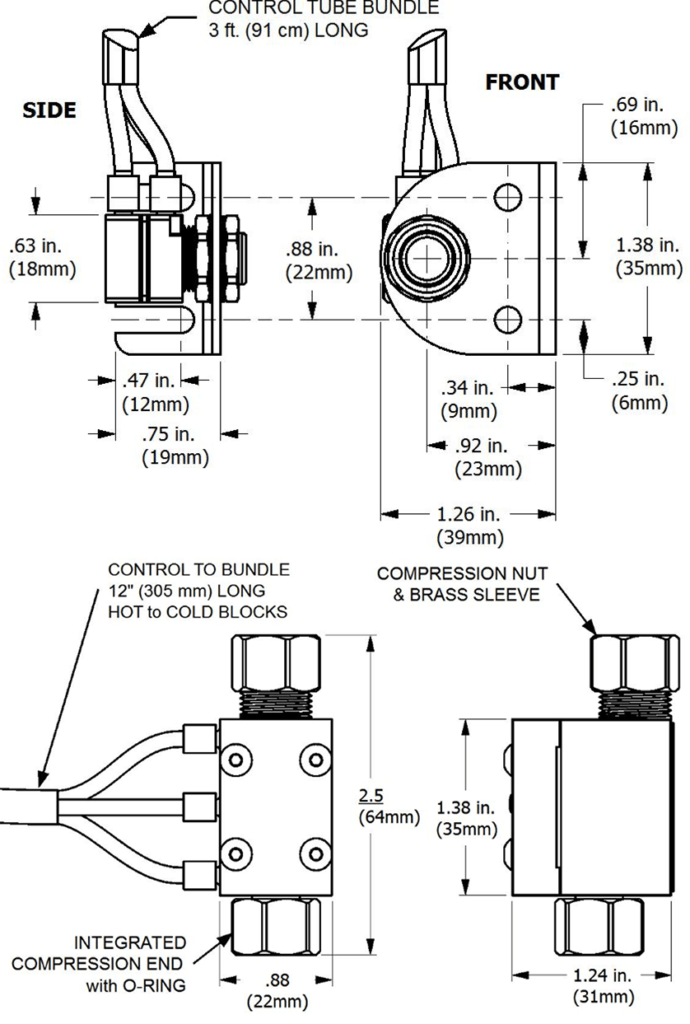

Main Valve Blocks: 2.5″ x 0.88″ x 1.25″ (6.35 x 2.24 x 3.18 cm)
Activator Valve: 0.63″ x 0.63″ x 1.0″ (1.60 x 1.60 x 2.54 cm)
Installation Instructions and Submittal Documents
Installation Instructions (PDF)
Submittal – Model 1720/1721/1722/1730 standard cabinet activators (PDF)
Submittal – Model 1720L/1721L/1722L/1730L latching cabinet activators (PDF)
Submittal – Model 1720LB/1721LB/1722LB latching cabinet activators with external button (PDF)
